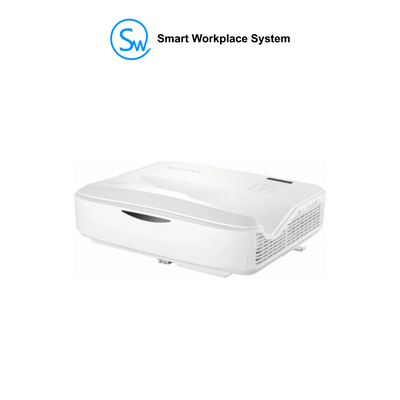

Viewsonic Ultra Short Throw WUXGA 5000lm Projector

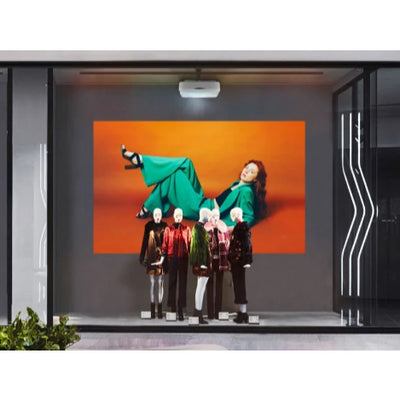

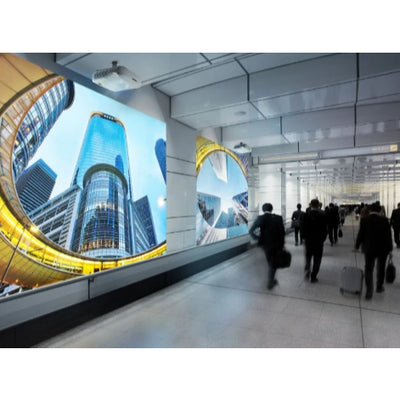

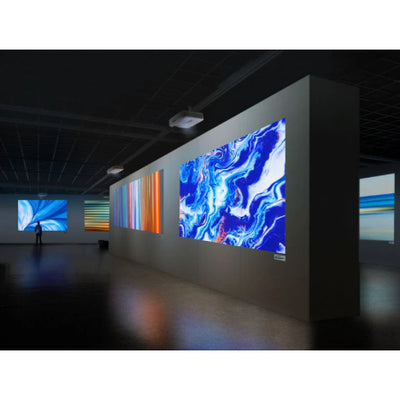

The LS832WU is part of ViewSonic’s Luminous Superior series, a lamp-free high brightness projector lineup designed for both commercial and educational spaces. This advanced 5,000 ANSI Lumens WUXGA ultra short throw laser projector is a go-to digital signage solution for public and commercial applications, such as museums, storefronts, shopping malls, and airports. The LS832WU's 0.25 ultra short throw ratio allows for a 100” screen from only 28 cm away, and the screen size can be further expanded up to 170”, offering a lower cost-per-inch compared to other types of commercial displays. Adopting the 2nd generation Laser Phosphor technology, it produces consistent high brightness for up to 30,000 hours lifespan?. With H/V keystone and 4 corner image adjustment, the LS832WU also offers flexible installation options. Complete with comprehensive LAN control, it enables centralized management of multiple devices and is compatible with Crestron, AMX, Extron, and PJ Link AV control systems.

Features:

- 0.25 ultra short throw for space-saving installation
- 2nd generation Laser Phosphor technology with up to a 30,000-hour lifespan
- 5,000 ANSI Lumens offering bright images in any environment
- Up to 170" ultra-large screen with lower cost-per-inch
- H/V keystone and 4 corner adjustment for enhanced installation flexibility
- Comprehensive LAN control providing efficient device management

Technical Specifications:

- Projection System: 0.67" WUXGA
- Native Resolution: 1920x1200
- Brightness: 5000 (ANSI Lumens)
- Brightness (Center Lumens): 6000
- Contrast Ratio: 3000000:1
- Display Color: 1.07 Billion Colors
- Light Source Type: Laser Phosphor
- Light Source Life (hours) with Normal Mode: 20000
- Light Source Life (hours) with SuperEco Mode: 30000
- Lens: F = 2.44, F = 3.70mm
- Projection Offset: 133%±3%
- Throw Ratio: 0.253
- Optical Zoom: Fixed
- Digital Zoom: 0.8x-2.0x
- Image Size: 80"- 170"
- Throw Distance: 0.17-0.66m (100"@0.28m)
- Keystone: H: +/-10°, V: +/-10°
- Audible Noise (Normal): 34dB
- Audible Noise (Eco): 28dB
- Input Lag: 33.2ms
- Resolution Support: VGA (640 x 480) to 4K (3840 x 2160)
- HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
- Horizontal Frequency: 15K- 91KHz
- Vertical Scan Rate: 24- 85Hz

Others

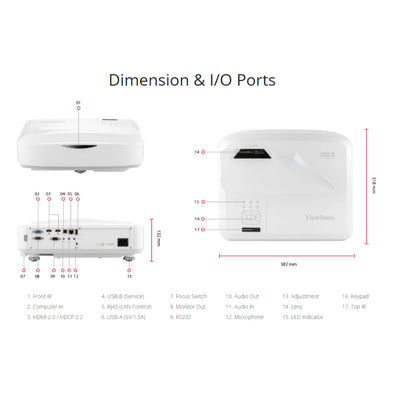

Input:
- Computer in (share with component): 1
- HDMI: 2 (HDMI 2.0/ HDCP 1.4/2.2)
- Audio-in (3.5mm): 1
- Microphone in: 1

Output:
- Monitor out: 1
- Audio-out (3.5mm): 1
- Speaker: 10W x1
- USB Type A (Power): 1 (5V/1.5A)

Download PDF
